Vision Applications

A vision application is a group of cameras formed automatically from their grouping parameters. A camera belongs to at most one application. All three of Factory, Line Code, and Vision Application must be set; otherwise the camera is ungrouped.

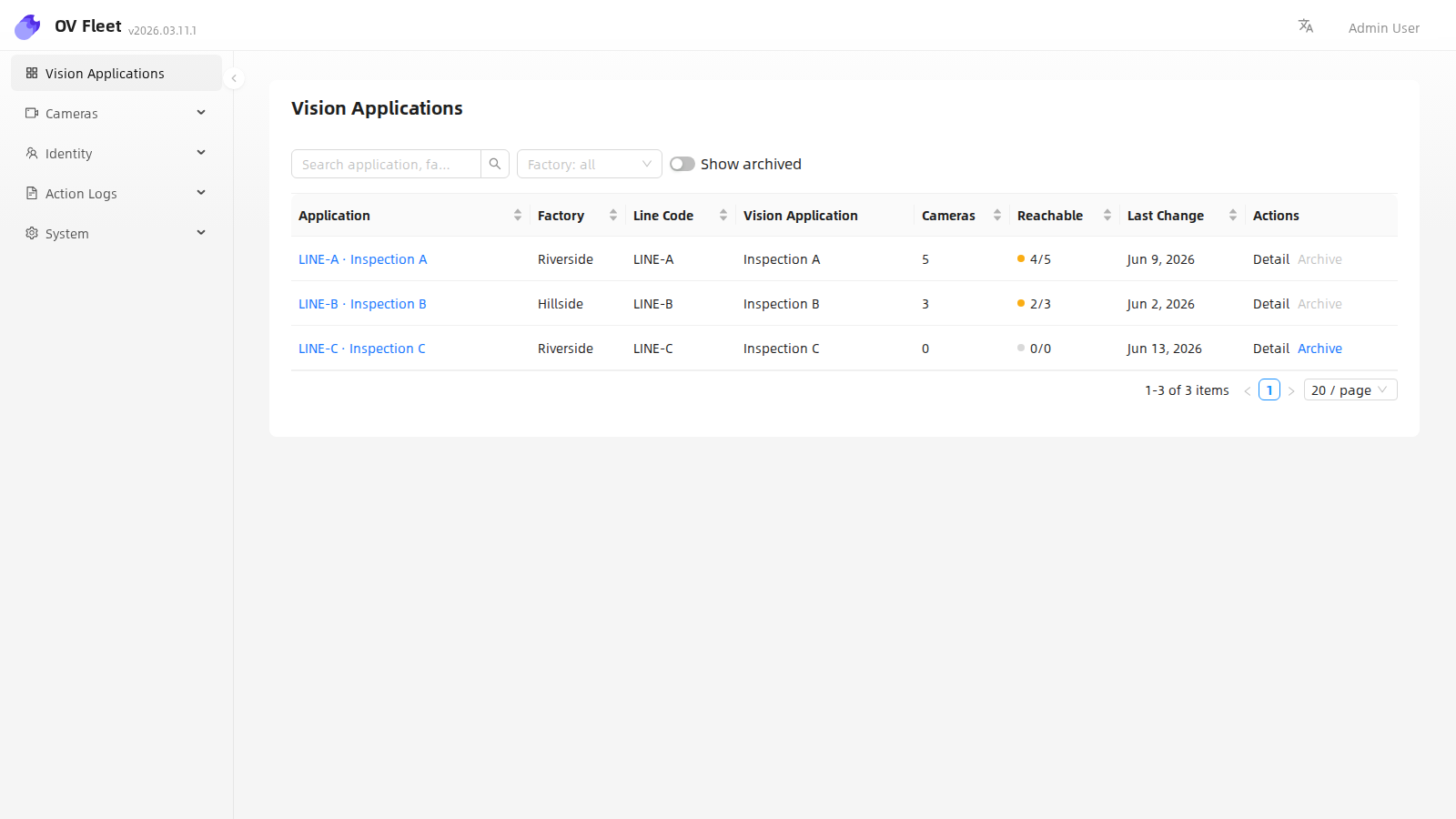

List page

The list page is sortable and searchable and shows the camera count per application. Archived applications are hidden by default.

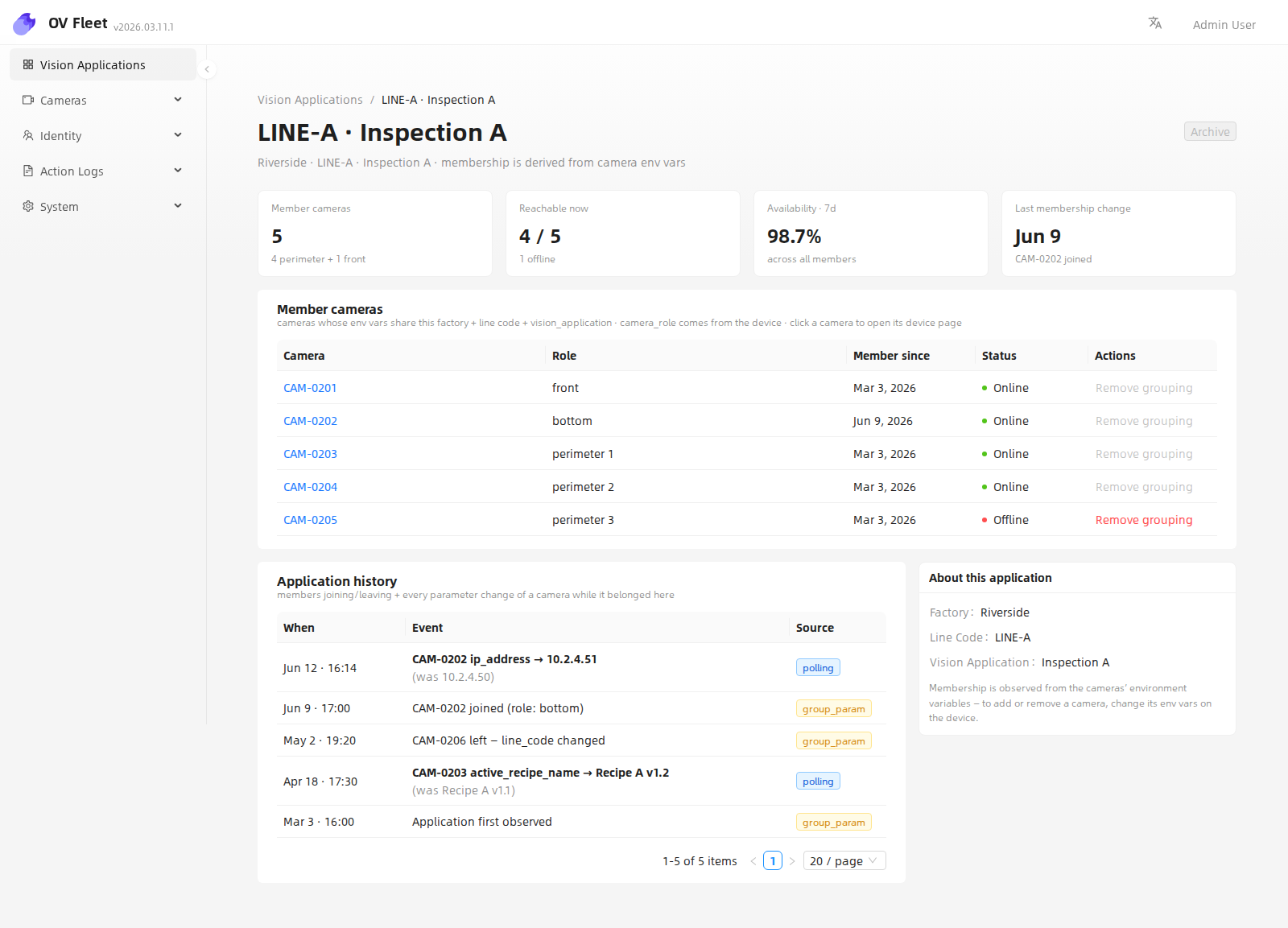

Detail page

The detail page shows members by Camera Role and the application history.

Archiving

An empty application can be archived. Archived applications are hidden by default and are auto-unarchived when a camera re-joins its triple.

Manual grouping clear

An unreachable camera's grouping can be cleared manually. This is non-persistent — the device's values are restored on reconnect.
